HBT60 Mobile hydraulic trailer concrete pump

HBT60 Mobile hydraulic trailer concrete pump



7.6

FOB Reference Price:Get Latest Price
US $10000-30000 / Set | 1 Set/Sets (Min. Order)
Type: HM-338
Condition: New
Port:Any port in China

HBT60 Mobile hydraulic trailer concrete pump has maximum output of 60 cubic meter per hour, equipped with self-diagnosis technology monitoring the pump status at any time as well as diagnosing more than 60 faults in real time. The 60 cubic meter trailer pump is capable of reducing the troubles shooting time by 70%, granting you both time and peace of mind.

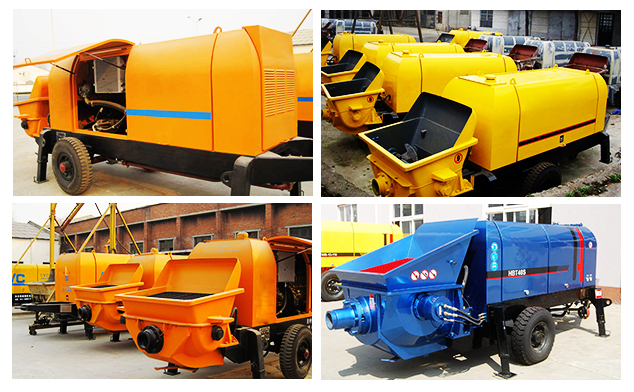

HBT60 Mobile hydraulic trailer concrete pump

Haomei HBT series concrete pumps are concrete pumping machines, including S-valve series of high-pressure concrete pumps, Z-gate-valve series of medium-pressure concrete pumps and D-butterfly-valve series of low-pressure concrete pumps.
Features of trailer concrete pump

use S-valve to switch the direction, for fine stone concrete conveying

good sealing S-valve, installed with floating wear resistant ring

High-quality wear resistant alloy components for long service-life

high delivery pressure for demand of high-rise and long distance projects

double-loop open circuit hydraulic system, ensure fast direction switching speed and high efficiency

air cooling system, without dependence of external water supply

with re-pumping function to smooth construction of better accessibility

automatic lubrication system for long service-life

PLC system to ensure best electrical control performance

equipped with wired remote controller, easy to operate






Item Unit HBT60
Theory Concrete Output
(Low / High Pressure)
m3/h 60
Concrete Pressure
(Low / high pressure)
Mpa 13/7.4
Hydraulic system pressure Mpa 32
Rotation speed r/min 1480
High / low pressure switch   Yes
Distribution valve   S valve
Pumping cylinder diameter/ Stroke mm 195/1500
Main oil pump discharge ml/r 110
Motor power kw 145
Voltage/ Frequency V/Hz 380/50
Hydraulic tank volume L 400
Height of adding material mm 1355
Hopper volume m3 0.8
Total mass kg 5800
Concrete slump mm 120-230
Aclinic Delivery distance  m 1200
Theory vertical pumping height m 250
Dimension: L*W*H mm 6240*2110*2550
