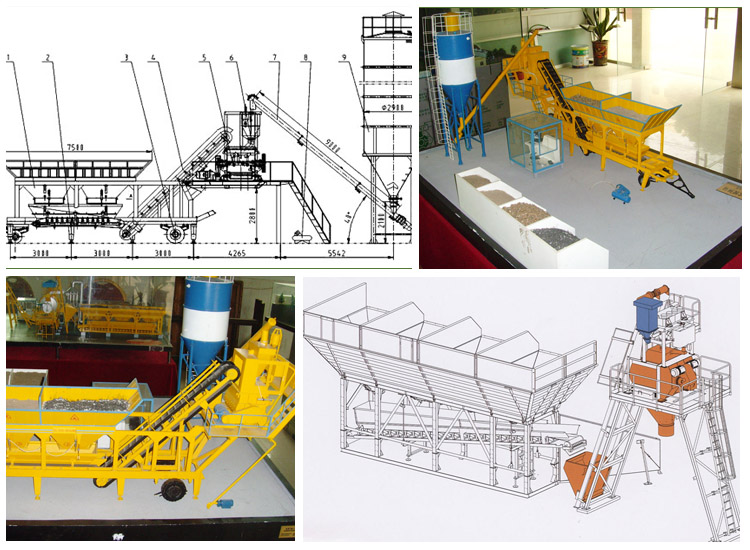

1. Main picture to show us this production line from the whole cement tower mixing plant price
2. Introduction of YHZS35 mobile concrete batching plant
For this mobile plant we have installed several plants in algeria and indonesia and so on, and it adopts JS750 concrete twin shafts mixer, module structure, which was designed as per the loading of container standard.
All modules are in one trailing unit. About YHZS35 mobile portable concrete batching plant, it can be done within ideal time period for dry-hard, half-dry-hard, plastic concrete with any mixing ratio.
The whole system adopts complete automatic system via computer with dynamic panel display to show clearly of the running of each part. Like the computer has weighting and control system to guarantee the quality of concrete. but we need to pay attention to ladder and platform to check and fix them in time.
3. model of this YHZS35 mobile concrete batching plant
4.Features of wet or dry type mobile concrete mixing plant
Haomei machinery Equipment Company has been in this field for many years, we have designed the best quality concrete plant in reasonable price with our many years experiences and western advanced technology. The batching unit, aggregate conveying unit, water supplying and additive agent supplying system, scaling system, mixing system, electrical control system and pneumatic system are centralized in one trailer zed chassis.
5.Technical parameters of Portable Concrete plant yhzs35 for sale
| |
Unit
|
Value
|
|
Theoretical productivity
|
m3/h
|
35
|
|
Weighing scale
|
Concrete
|
Kg
|
2000
|
|
Cement
|
Kg
|
600
|
|
Water
|
Kg
|
300
|
|
Liquid addictive
|
Kg
|
20
|
|
Overall power
|
KW
|
about 60
(optional parts not included)
|
|
Power source
|
V/ HZ
|
380/50
|
|
Discharging height
|
M
|
3.8
|
|
Overall weight
|
T
|
20 (optional parts not included)
|
|
Trail speed
|
km/h
|
≤40
|
|
Specification
(LxWxH)
|
During work
|
M
|
17x3.6x8.2
|
|
During transportation
|
M
|
17.6x2.4x4.35
|
|
