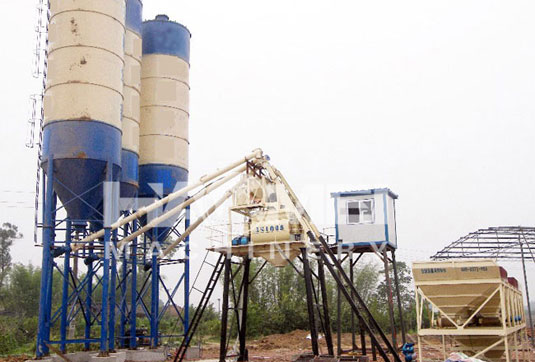

Main picture of YHZS50/60 or 50m3/h mobile concrete batch plant for sale
Features of yhzs50 mobile concrete mixing plant
1. Automatic PLC control system and easy to operate with high efficiency
2. CE&ISO certification (you can check from our certification sections)
3. These concrete batching plant is truly portable type plant with king pin attachment and pneumatic braking system.
4. These plants are built on a single sturdy chassis.
5. With twin shaft mixer as mixing device, these concrete mobile batching plant factory have high efficiency and good performance.
YHZS50/60
YHZS60 is special construction concrete equipment. It is applied for airport way, wharf, road, bridge and so on, It can also be used for the large and emergency repair construction operation. It can be installed quickly on site.
This plant is consisted by mixer, batching system, feeding system, weighing system, cement silo, screw conveyor and all the necessary equipment, and they are designed as module .So We can deliver YHZS mobile series plant easily by container, and install quickly on site and get it to run without debugging. This equipment has the characteristic of high automatic, well mixing, high productivity, high flexibility.
See the details of YHZS50/60 small mobile concrete batching plant from different directions
Technical parameters
| type |
YHZS25 |
YHZS35 |
YHZS50 |
YHZS75 |
| Theoretical production capacity(m³/h) |
25 |
35 |
50 |
75 |
| Concrete mixer |
Type |
JS500 |
JS750 |
JS1000 |
JS1500 |
| Power(KW) |
24.75 |
38.6 |
51 |
65.5 |
| Discharging capacity(L) |
500 |
750 |
1000 |
1500 |
| Aggregate size(Pebble/Macadam)(mm) |
80/60 |
80/60 |
80/60 |
80/60 |
| Aggregate Bin volume(m³) |
3.2 |
7.3 |
8.3 |
12 |
| Weighing Accuracy |
Aggregate (KG) |
±2% |
±2% |
±2% |
±2% |
| Cement(KG) |
±1% |
±1% |
±1% |
±1% |
| Fly ash(KG) |
|
|
±1% |
±1% |
| Water (KG) |
±1% |
±1% |
±1% |
±1% |
| Additive(KG) |
±1% |
±1% |
±1% |
±1% |
| Total power(KW) |
50Kw |
64Kw |
85Kw |
110KW |
| Discharging height(M) |
2.8 m |
2.8 m |
2.8 m |
3.8m |
| Gross weight(T) |
12 |
16 |
20 |
50 |
|
