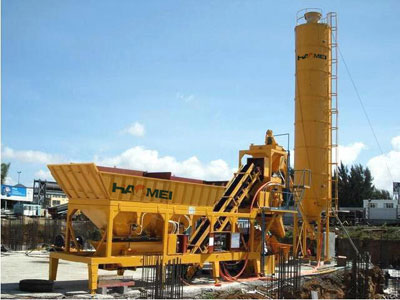

HZS25 Concrete batching plant (25m3/h) belongs to compulsory and efficiency Concrete mixing equipment, it can produce various kinds of concrete including quaking concrete and hard concrete, with high produce efficiency, it is widely used large and medium scale building works, road and bridge works and concrete products prefabrication plants, and is an ideal equipment to produce commercial used concrete.
Compact Design ,Low Maintenance and Cost Efficient
* International popular modular structure, with easy installation and assembly
* adapt and apply the most advanced technologies around the world
* 30 years of experiences in manufacturing concrete mixing plants
* The mixing system with excellent mixing performance, high efficiency
* Main electrical components are from Germany SIEMENS
* Reduced Power Consumption On Account Of Short
* suitable for small-scale construction projects
Specification of Concrete Batching Plant
| Model |
HZS25 |
| Specification |
Unit |
Value |
| Productivity |
m3/h |
25 |
| Capacity of Mixer |
m3 |
0.5 |
| Mixer Power |
kw |
18.5 |
| Discharge Height |
m |
3.8(for customers choice) |
| Aggregate Bin |
Quantity |
3 |
| Aggregate Bin Capacity |
m3 |
0.8 |
| Max. Weighing Value of aggregate |
kg |
500 |
| Max. Weighing Value of cement |
kg |
300 |
| Max. Weighing Value of water |
kg |
160 |
| Max. Weighing Value of additive |
kg |
20 |
| Aggregate Measuring Accuracy |
% |
2 |
| Water Measuring Accuracy |
% |
1 |
| Cement Measuring Accuracy |
% |
1 |
| Additive Measuring Accuracy |
% |
1 |
| Cement Silo |
_ |
Optional |
| Cement Screw Conveyor |
_ |
Optional |
| Cement Silo Capicity |
_ |
Optional |
| Control Mode |
_ |
Auto/Semi control |
|
