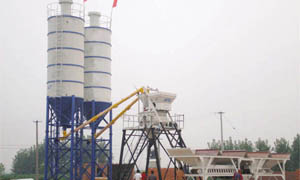

HZS35 Concrete batching plant is one of the small-sized plant series of HAOMEI company. It is semi-automatic concrete mixing block composed by feeding, batching, mixing, electrical control and steel structure components, suitable for small-scale construction projects, precast yard and commercial concrete companies. Main features are as follows:
Compact Design ,Low Maintenance and Cost Efficient
* International popular modular structure, Easy Transportation and Fast Installation
* Adapt and apply the most advanced technologies around the world
* 30 years of experiences in manufacturing concrete mixing plants
* The mixing system with excellent mixing performance, high efficiency
* Main electrical components are from Germany SIEMENS
* Reduced Power Consumption On Account Of Short
* Prompt reply for service and spare parts
* Suitable for small-scale construction projects
| Model |
HZS35 |
| Specification |
Unit |
Value |
| Productivity |
m3/h |
35 |
| Capacity of Mixer |
m3 |
0.75 |
| Mixer Power |
kw |
18.5 |
| Discharge Height |
m |
3.8(for customers choice) |
| Aggregate Bin |
Quantity |
3 |
| Aggregate Bin Capacity |
m3 |
1.2 |
| Max. Weighing Value of aggregate |
kg |
850 |
| Max. Weighing Value of cement |
kg |
500 |
| Max. Weighing Value of water |
kg |
300 |
| Max. Weighing Value of additive |
kg |
30 |
| Aggregate Measuring Accuracy |
% |
2 |
| Water Measuring Accuracy |
% |
1 |
| Cement Measuring Accuracy |
% |
1 |
| Additive Measuring Accuracy |
% |
1 |
| Cement Silo |
_ |
Optional |
| Cement Screw Conveyor |
_ |
Optional |
| Cement Silo Capicity |
_ |
Optional |
| Control Mode |
_ |
Auto/Semi control |
|
