HZS75 Concrete batching plant ( Skip hoist )

HZS75 Concrete batching plant ( Skip hoist )



7.6

FOB Reference Price:Get Latest Price
US $25,000-45,000/ Set | 1 Set/Sets (Min. Order)
Type: HM-298
Condition: New
Port:Any port in China

The mixer for HZS75 Concrete batching plant ( Skip hoist ) is JS1500 twin-shaft concrete mixer, having good mixing quality and high efficiency.
The dosing of aggregate, cement, water, liquid additive are measured by weighing method, high batching accuracy.
The electrical control system adopts the imported components. It has complete funtions, reliable performance and convenient operation. The control centre is installed on the ground in order to eliminate the vibration to electric control system.

Main feature of HZS75 concrete batching plant :

 1. Adopt combined structure and modular unit, convenient to install and remove;

2. Mixing and aggregate lifting system adopt JS1500 double-shaft compulsory concrete mixer which offers high quality and efficient mixing;

3. Aggregate batching system adopts PLD2400 concrete batcher which offers efficient and accurate measurement;

4. Powder lot is electronic measured, highly accurate dosing;

5.Water is flow-metering,simple and practical,highly accurate dosing.

Main technical data of HZS75 concrete batching plant

Type

HZS75

Productivity in theory

75m³/h

Mixer

JS1500

Total power

130KW

Maximum aggregate diameter

80mm

Aggregate feeding method

Skip hopper

Batcher

PLD1200

Aggregate weighing

6000kg ±2%

Cement(plus fly-ash) weighing

1000kg ±1%

Water weighing

500kg ±1%

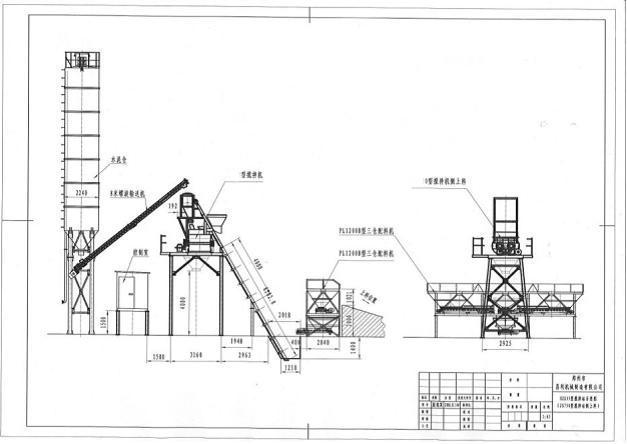

Overall dimension(during operating)

        (LXWXH)

25.9mX9.2mX11.1m



Discharging height

3.8m

Total weight

50T

Control

Fully automatic central control

Cement silo(optional)

Required on clients' demand

Cement screw(optional)

Each cement silo equipped with one φ219 screw
