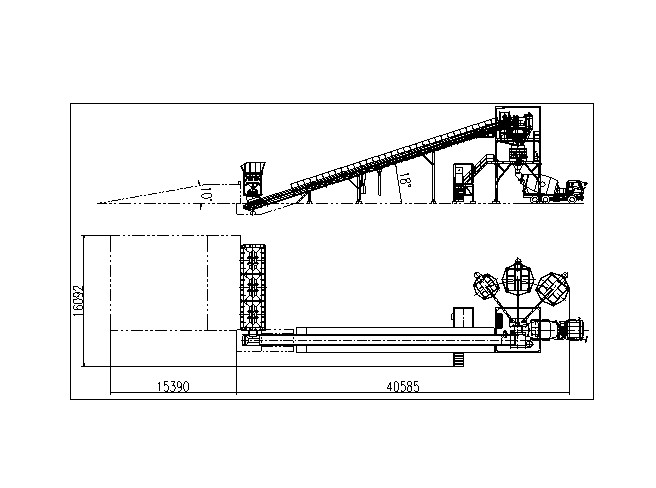

HZS90 concrete batching plant has the compact and reasonable structure, small occupation area, and adopts L type layout and unique feeding type, which adopts belt conveyor in great inclined to feed. The products owns good mixing effect and high efficiency, its control system adopts PLC automatic logical program, host computer all-time tracking management, with safe and trustable operation and more facilitating maintenance.

* Compact Design ,Low Maintenance and Cost Efficient
* International popular modular structure, Easy Transportation and Fast Installation
* Adapt and apply the most advanced technologies around the world
* 30 years of experiences in manufacturing concrete mixing plants
* The mixing system with excellent mixing performance, high efficiency
* Main electrical components are from Germany SIEMENS
* Reduced Power Consumption On Account Of Short
* Prompt reply for service and spare parts
* The ideal choice for producing high-quality concrete.
| Model |
HZS90 |
| Specification |
Unit |
Value |
| Productivity |
m3/h |
90 |
| Capacity of Mixer |
m3 |
1.5 |
| Mix Power |
kw |
44 |
| Discharge Height |
m |
3.8 |
| Aggregate Bin |
Quantity |
4 |
| Aggregate Bin Capacity |
m3 |
2.4 |
| Max. Weighing Value of Aggregate |
kg |
1300 |
| Max. Weighing Value of Cement |
kg |
1100 |
| Max. Weighing Value of Water |
kg |
500 |
| Max. Weighing Value of Additive |
kg |
40 |
| Aggregate Measuring Accuracy |
% |
±2% |
| Water Measuring Accuracy |
% |
±1% |
| Cement Measuring Accuracy |
% |
±1% |
| Additive Measuring Accuracy |
% |
±1% |
| Cement Silo |
_ |
Optional |
| Cement Screw Conveyor |
_ |
Optional |
| Cement Silo Capacity |
_ |
Optional |
| Control Mode |
_ |
Auto/Semi Control |
|
